Week 4: Structural Systems

 Interior Designers do not typically deal with structural systems, but we must recognize the building's structure and know when an engineer or architect is required on a project.

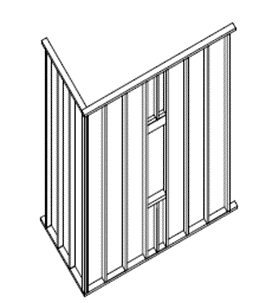

Structural systems carry loads of a building and transfer them to the foundation. They do this through three primary walls, bearing walls, stud walls, and structural frame.


Structural basics focus on stability, strength and stiffness, and economy. Loads consist of tension, compression, and deflection.


Some of the main structural forms are trusses, arches, shells, cables, posts, and beams. Historically, heavy timber mortise and tenon were used for support beams and others. Today, wood, steel, masonry, concrete, and bearing walls are the main ways in which to distribute the loads.


Alternative systems can be used such as SIPs which are Structural Insulated Panels, that contain agriboard which is made of rice or wheat straw. There is also rammed earth, cordwood, bamboo frames, and earth sheltering.

recycling materials can reclaim lumber and you can also get some from some of the older barns and other buildings.

The alternative building system that I looked up was Straw Bale Construction. It uses bales of straw as structural elements and building insulation. it was first used in construction in 1896. in 1902 people began plastering the hay bales before using them structurally to keep the cows from eating them. Wheat, rice, barley, rye and oats are used form the straw bales. it is a good use of resources and is renewable. Rodent infestation can be a problem though and is not flame retardant.







Comments

  1. Professor VanderNoordaaSeptember 19, 2024 at 5:13 PM

    Eliana- I really appreciate the time and attention you put into this blog entry. Your summary was very organized and comprehensive. I appreciate the diagrams you included to explain the material. Your summary and analysis of the Straw Bale construction methods was very good. 50/50 Total Points

    ReplyDelete
  2. Sami FordSeptember 20, 2024 at 10:28 AM

    Great job! I liked how you used so many pictures, both to break up the chunky text and use them as helpful visual examples. Additionally, your Straw Bale Construction was very interesting.

    ReplyDelete
  3. Rebeca HerreraSeptember 21, 2024 at 9:27 AM

    The pictures you provided really complimented your summary and I enjoyed reading through it!

    ReplyDelete

Post a Comment

Popular posts from this blog

Week 7: Ceilings

 Interior designers don't deal with roof framing, since it is a structural issue They do need to respond to the shape of the roof as it shapes interior spaces The ceiling finish also falls under the realm of the designer.  Ceilings Cathedral ceilings/sloped ceilings Pros made popular during the 1970's Provides a sense of spaciousness Popular in Residential and Commercial design Cons Integration of lighting Issues of proper heating and cooling Creation of the sense of human scale within the space Directly applied ceilings gypsum wallboard A directly applied ceiling that attaches to the building structure most commonly used ceiling finish within the residential environment plaster Plaster is applied over a three-coat system over lath This finish used before wall board on walls and ceilings In historical buildings plaster was used for crown molding or ceiling medallions Suspended acoustical panel ceilings (SAPC) Grid types Material types Preferred ceiling treatment in the commerc...
Read more

Week 11: Indoor Environmental Quality

 Acoustics How sounds travel and are heard Noise and unwanted sound Typical decibels of various sounds  the limit of human comfort is 110-120 Noise reduction coefficient (NRC) is the typical materials that are rated as far as the materials absorption capacity Sount Transmission class (STC) is the capability of a material to absorb sound Reverberation Time (RT) Sound that is built up in a room over time (echo) can be controlled Important when designing auditoriums, classrooms, lecture halls, music rooms, and performance facilities The principles of Room design partitions sound waves travel directly through wall studs, from one room to another. Staggered wall studs can disrupt the travel of the sound waves from room to room Room volumes  generally designers keep the room volume low when low reverberation times are desired larger spatial volumes are desirable in spaces such as performance halls when high reverberation times are desired.  Privacy Acoustical Partitions pr...
Read more

Week 6: Flooring

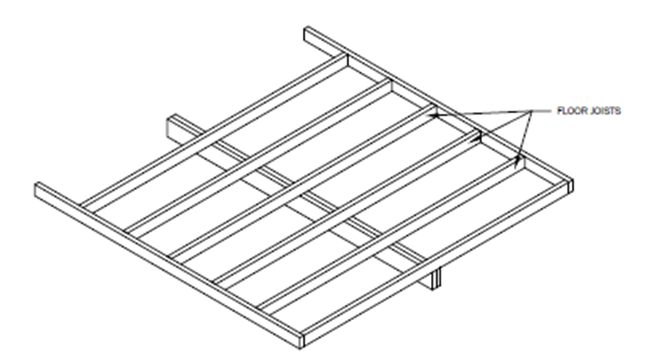

 Wood Floor Framing Systems: Light frame uses multiple small wood joints to carry a load Heavy timber frame relies on columns and beams to carry a load Structural steel floor framing system relies on regularly placed column that support steel beams. Girders span the beams and carry the metal decking. concrete is poured into the metal decking to create the floor system  Open web steel joists are used to carry metal decking for a concrete metal decking floor system Concrete as a flooring system is either poured in place on site or cast at a plant and assembled on site Floor insulation must be installed to keep cold air from the ground from moving into the finished space above. Insulation is used when a floor is installed above a crawl space or above the earth  Interior floor material multiple materials are used Use of the space and building code requirements narrow type of floor finishes to use this is divided into hard and soft surfaces.  Hard surfaces concrete used a...
